About this item

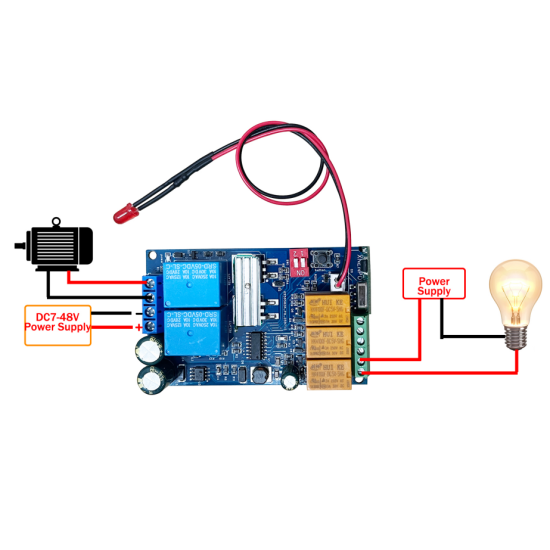

• Remote Control: This device features a remote control for convenient speed adjustment from a distance.Delay function：Can be set for Slow start and stop mode，Actual remote control distance tested is 300m / 900ft (theoretically),Three independent 3amp relays can control the headlights or interior lights of the vehicle,Multiple receivers can be controlled with one remote control.
• Wide Voltage Range: Compatible with input voltages from DC7V to 48V, suitable for various power supply scenarios.
• Precise Speed Control: Adjust the motor speed from 0-100% with the simple remote controller.
• Overload Protection: Equipped with a maximum load current/voltage of 7AMP/48VDC for safety.
• Easy Installation: Straightforward wiring and clear instructions for seamless integration into your system,PCB size: 80mm x 50mm x 19mm （3.15x1.9x0.75 inch.

Receiver:

Model No.: xm1pwm-led

Motor forward ,reverse and stop,PWM speed controller,speed 0-100%,10khz.

Control Modes: Toggle, Momentary, Delay mode, Long delay mode.

Coding Type: learning code

Coding Setting: By learning

Power Supply (Operating Voltage): DC 7V~50V.,

Working Voltage Range of Relay: DC 7V~50V.

PCB size: 80mm x 50mm x 19mm （3.3x1.7x0.75 inch）

Maximum Working Current: 7A
