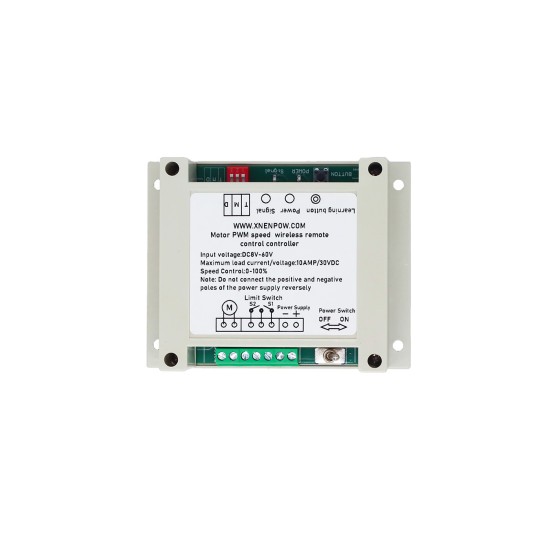

HO N proportional train model controller Remote Control Slow start and stop mode  DC motor Forward and reverse  PWM speed control Limit Switches

 Package Include:

1 x Receiver: xm1pwm-dc  (one Channel /four Control Modes)

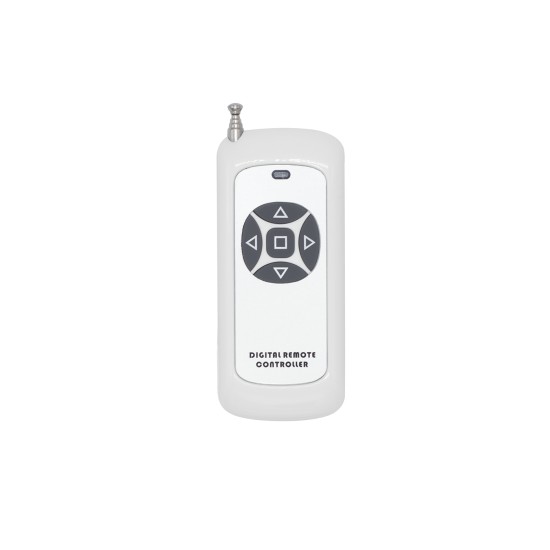

1 x Transmitter: R-5

1 x User manual

Feature:

Wireless control, easy to install

Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC 8V-30V,You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

With characteristics of over current protection, short-circuit protection and temperature protection.

LED  visual indication.

Use microcontroller, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.

Reliable control: The transmitter (Encoding) and the receiver (Decoding).

One/several transmitters can control one/several receivers simultaneously.

If you use two or more receivers in the same place, you can set them with different codes.

Transmitting Frequency: The default frequency is 433MHz ,we can also provide 315MHz, you can leave us a message or contact us if you need.

Receiver:

Model No.: xm1pwm-dc

Channel: 1 CH

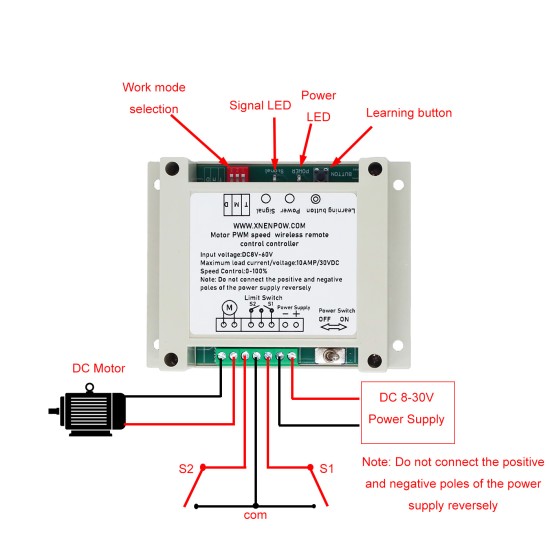

Motor forward ,reverse and stop，Limit Switches,PWM speed controller,speed 0-100%,10khz.

Control Modes: Toggle, Momentary, Delay mode, Long delay mode.

Coding Type: learning code

Coding Setting: By learning

Power Supply (Operating Voltage): DC 8V~30V.,

Working Voltage Range of Relay: DC 8V~30V.

PCB size: 74mm x 52mm x 24mm

Case size: 79mm x 58mm x 35mm

Maximum Working Current: 10A

Transmitter:

Model No.: R-5

Remote Control Distance: 300m / 900ft (theoretically)

Unit size: 87mm x 36mm x 16mm

Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Antenna can be stretched

Usage:

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as

following operation):

1.Setting control mode Toggle: Only connect 1.

Toggle mode:

Press button           ,Motor forward,

Press button           ,Motor reverse.

Press button           ,Motor Motor stop immediately.

Press button           ,Motor speed up.

Press button           ,Motor speed down.

2.Setting control mode Momentary: Only connect 2.

Press and hold on       ,Motor forward.Release button,Motor stop.

Press and hold on       ,Motor reverse.Release button,Motor stop.

3.Setting control mode Delay mode（Rail Train Model）: Do not connect.

Press button       ,The motor slowly rotates forward from 0% to the speed you set.(0% to 100%, it takes approximately 5 seconds，When the motor is in reverse rotation and this button is pressed, the motor will first stop reversing slowly and then rotate forward slowly.).

Press button       ,The motor slowly rotates reverse from 0% to the speed you set.(0% to 100%, it takes approximately 5 seconds).
