Package Include:

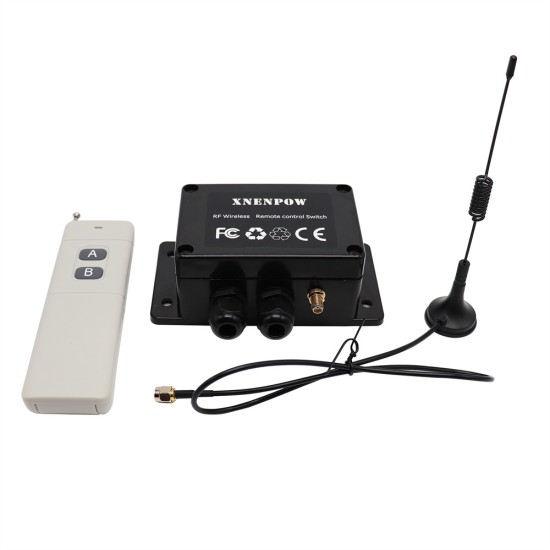

1 x Receiver: X2-ac  (five Channel /four Control Modes)

2 x Transmitter: R-2

1 x User manual

Feature:

Wireless control, easy to install

Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 89~250V.

You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

With characteristics of over current protection, short-circuit protection and temperature protection.

Audible / visual indication

Use microcontroller, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.

Reliable control: The transmitter (Encoding) and the receiver (Decoding).

One/several transmitters can control one/several receivers simultaneously.

If you use two or more receivers in the same place, you can set them with different codes.

Transmitting Frequency: The default frequency is 433MHz ,we can also provide 315MHz, you can leave us a message or contact us if you need.

Receiver:

Model No.: X2-ac

Channel: 2 CH

Control Modes: Toggle, Momentary, Latched, Delay mode, Toggle and Momentary.

Coding Type: learning code

Coding Setting: By learning

Power Supply (Operating Voltage): AC 89~250V.,

Working Voltage Range of Relay: AC 89~250V

PCB size: 74mm x 52mm x 24mm

Case size: 79mm x 58mm x 35mm

Maximum Working Current: 10A

Transmitter:

Model No.: R-2

Channel: 2 CH

Remote Control Distance: 100m / 300ft (theoretically)

Encode: learning code

Power Supply:  cr2016 3v  battery (included, can be used for 12 months)

Usage:

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as

following operation):

1.Setting control mode Toggle: Only connect.  Toggle mode: Press button A,Output1 output power supply, Press button A again,Output1 off.

2.Setting control mode Momentary: Only connect 2.

Control mode Momentary: Press and hold -> On; Release -> Off.

Press and hold button A: Output1output power supply,Release button A,off.

3.Setting control mode Latched: Do not connect.

Control mode Latched: Press -> On, another relay Off; Press another button -> Off.

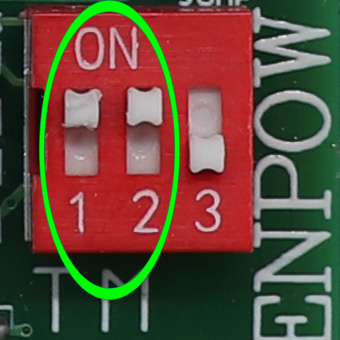

4.Setting control mode Momentary + Toggle: Connect 1 and 2.

Control mode Momentary (Channel 1): Press -> On; Press again -> Off.
Press and hold button A: Turn on relay 1,Output1 output power supply.

Release button A: Turn off relay 1.

Press button B: Turn on relay 2 ,Output2 output power supply.

Press button B again: Turn off  relay 2.

5. Delay mode:Press -> On, off  after delay.

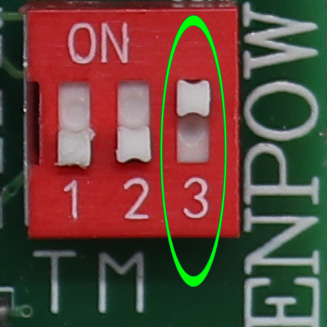

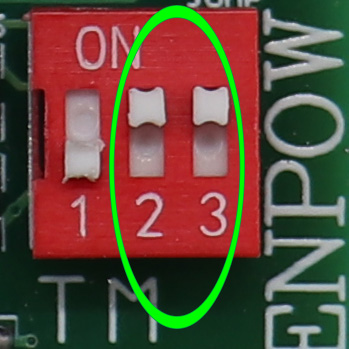

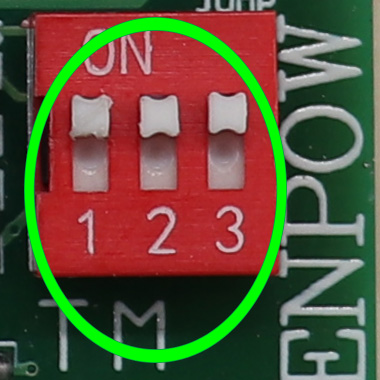

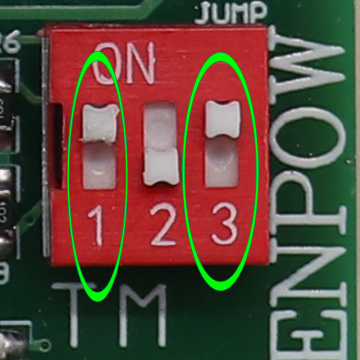

  5S   10S  15S    20S

 We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.

Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored codes have been deleted successfully.

Learning the button of remote control:

1) Press the button of receiver; signal LED on the receiver keeps shining. The receiver enters into status of LEARNING.

2) Press any one button on remote control. If signal LED flashes quickly 15 times and turns off, it means learning is successful.

3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued.

4) The receiver can learn several remote controls with different codes.
