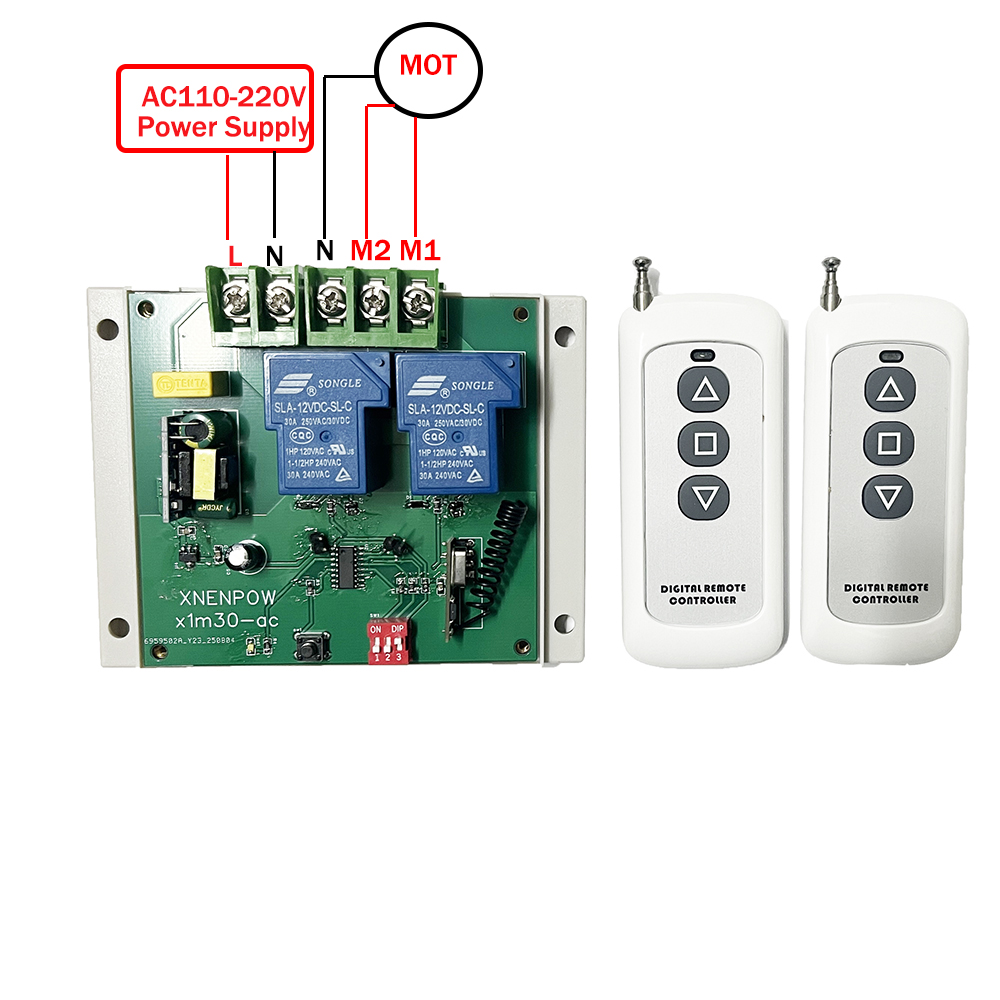

Receiver:

Model No.: x1m30-ac

Channel: 1 CH

Control Modes:Momentary, Latched, Delay mode

Coding Type: learning code

Coding Setting: By learning

Power Supply (Operating Voltage): AC 89~250V.,

Working Voltage Range of Relay: AC 89~250V

Maximum Working Current: 30A

Transmitter:

Model No.: R-3

Channel: 2 CH

Remote Control Distance: 100m / 300ft (theoretically)

Encode: learning code

Power Supply:  23A 12V  battery (included, can be used for 12 months)

Usage:

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as

following operation):

1.Setting control mode Latched: Only connect 1.

Toggle mode:

Press button   UP   ,   Motor forward,

Press button   Down      ,Motor reversal.

Press button         ,Motor stop.

2.Setting control mode Momentary: Only connect 2.

Press button   UP   ,   Release -> Motor stop.

Press button    Down      ,Release -> Motor stop.

3.5S Delay mode:Press -> On, off  after delay.

We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.

Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored codes have been deleted successfully.

Learning the button of remote control:

1) Press the button of receiver; signal LED on the receiver keeps shining. The receiver enters into status of LEARNING.

2) Press any one button on remote control. If signal LED flashes quickly 15 times and turns off, it means learning is successful.

3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued.

4) The receiver can learn several remote controls with different codes.
