Two motors Forward and reverse RF Wireless Remote Control switch

NOT： Please make sure your AC motor has forward and reverse functions.

Package Include:

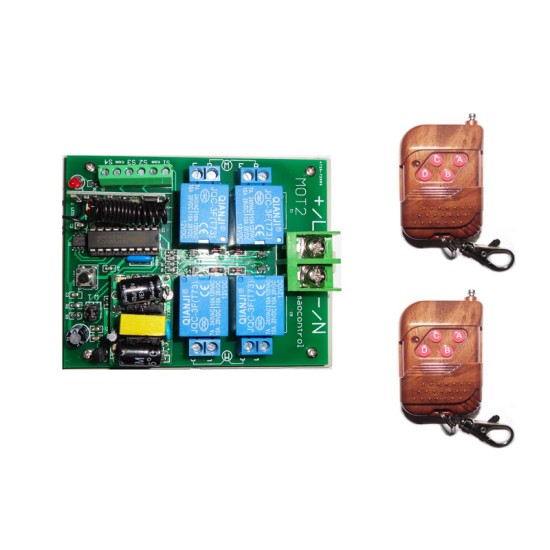

1x Receiver: MOT2-AC

2 x Transmitter: R-4

1 x User manual

Feature:

Wireless control, easy to install

Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 110~240V or DC 0~28V.

You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

With characteristics of over current protection, short-circuit protection and temperature protection.

Audible / visual indication

Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.

One/several transmitters can control one/several receivers simultaneously.

If you use two or more receivers in the same place, you can set them with different codes.

Transmitting Frequency: The default frequency is 315MHz ,we can also provide 433MHz, you can leave us a message or contact us if you need.

Receiver:

· Model No.: MOT2-AC

· Channel: That can control two motor Forward and Reversion

· Control Modes: Momentary,Toggle,Momentary + Toggle

· Coding Type: Fixed code

· Coding Setting: By learning

· Power Supply (Operating Voltage): AC85-250V

· Working Voltage Range of Relay:AC85-250V

· PCB size: 94mm x 73mm x 20mm

· Case size: 100mm x 80mm x 30mm

· Maximum Working Current: 10A

Transmitter:

Model No.: R-4

Channel: 4 CH

Remote Control Distance: 100m / 300ft (theoretically)

Encode: Fixed code by Soldering

Unit size: 58mm x 39mm x 16mm

Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage:

We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.

Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored codes have been deleted successfully.

Learning the button of remote control:

1) Press the button of receiver; signal LED on the receiver keeps shining. The receiver enters into status of LEARNING.

2) Press any one button on remote control. If signal LED flashes quickly 15 times and turns off, it means learning is successful.

3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued.

4) The receiver can learn several remote controls with different codes

control modes :

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as

following operation):

Setting control mode Toggle: Only connect “T”.

Control mode Toggle:

Press button A -> the motor 1 Forward; Press button A again -> the motor 1 stop.

Press button B -> the motor 1 reverse; Press button B again -> the motor 1 stop.

Press button C -> the motor 2 Forward; Press button C again -> the motor 2 stop.

Press button D -> the motor 2 reverse; Press button D again -> the motor 2 stop.

Setting control mode Momentary: Only connect “M”.

Control mode Momentary:

 Press and hold A -> On; Release -> Off.

Press and hold on button A: relay 4 output“+”，relay 2 output “-”,the motor 1 Forward. Release button A, the motor 1 stop.

Press and hold on button B: relay 4 output“-”，relay 2 output “+”,the motor 1 reverse. Release button B, the motor 1 stop.

Press and hold on button C: relay 3 output“+”，relay 1 output “-”,the motor 2 Forward. Release button C, the motor 2 stop.

Press and hold on button D: relay 3 output“-”，relay 1 output “+”,the motor 2 reverse. Release button D, the motor 2 stop.

Setting control mode Momentary + Toggle: Connect “T” and “M”.

Press button A -> the motor 1 Forward; Press button A again -> the motor 1 stop.

Press button B -> the motor 1 reverse; Press button B again ->
