Package Include:

1x Receiver: MOT1-AC

2 x Transmitter: R-4

1 x User manual

Feature:

Wireless control, easy to install

Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 85~240V .

You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.

With characteristics of over current protection, short-circuit protection and temperature protection.

Audible / visual indication

Professional capacitor for motor , more secure

Use microcontroller model of EM78P156, an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.

Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.

One/several transmitters can control one/several receivers simultaneously.

Transmitting Frequency: 433MHz

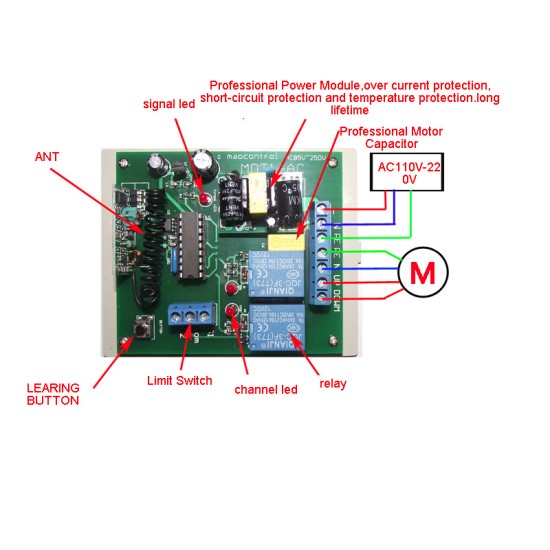

Receiver:

Model No.: MOT1-AC

Channel: That can control one motor Forward and Reversion

Coding Type: Fixed code

Coding Setting: By learning

Power Supply (Operating Voltage): AC85V~240V.

PCB size: 83mm x 73mm x 18mm .

Case size: 99mm x 79mm x 28mm .

Maximum Working Current: 10Amp.

Power input:  L(Live Wire) ,N(Null Wire), PE(Earth Wire)

Output:  PE(Earth Wire), N(Null Wire), up , down

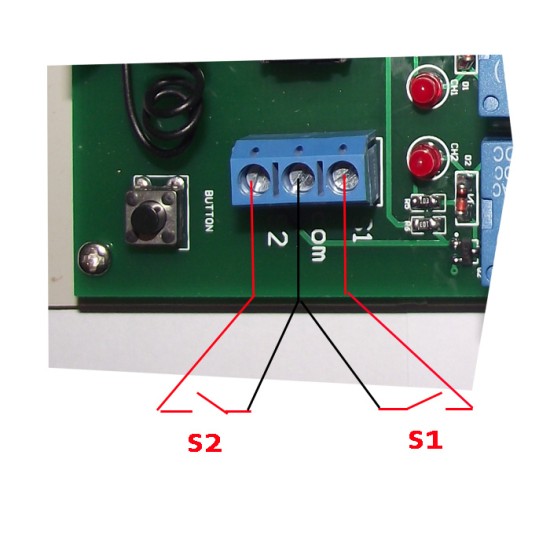

Limit Switches: S1(Limit Switch 1) ，com（Common port），S2（Limit Switch 2），if you want to stop your motor when it was running to a location, you can connect wires to S1 and COM. The motor will stop only to make the S1 and COM or S2 and COM short circuit

Transmitter:

Model No.: R-4

Channel: 4 CH

Remote Control Distance: 50M~100M

Encode: Fixed code by Soldering

Unit size: 58mm x 39mm x 16mm

Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage:

We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.

Operation: Press and hold the button of receiver until signal LED flashes slowly; release the button, LED keeps slow flash. That means all stored codes have been deleted successfully.

Learning the button of remote control:

1) Press the button of receiver; signal LED on the receiver keeps shining. The receiver enters into status of LEARNING.

2) Press any one button on remote control. If signal LED flashes quickly 15 times and turns off, it means learning is successful.

3) When receiver is in the status of LEARNING, press again the button of receiver, signal LED turns off, learning process will be discontinued.

4) The receiver can learn several remote controls with different codes

Control mode:

Setting control mode Toggle: Only connect CN1.

Press button A  -> the motor up, Press button A again ->the motor stop

Press button C  -> the motor down, Press button C again ->the motor stop

Setting control mode Momentary: Only connect CN2.

Press button A and hold -> the motor up, Release->the motor stop

Press button C and hold -> the motor down, Release->the motor stop

Setting control mode Latched: Do not connect CN1 and CN2.

Press button A -> the motor up;

Press button B -> the motor stop.

Press button C -> the motor down;

Press button D -> the motor stop;
