RF Wireless Remote Control Radio Controller / Transmitter & Receiver

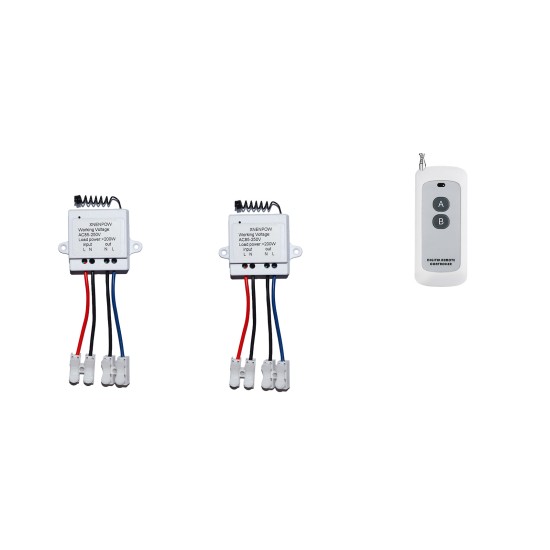

Package Include:

2 x Receiver: M1-AC

1 x Transmitter: R-1

1 x User manual

Feature:

Wireless control, easy to install

Control Lights, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC80-260V

Audible / visual indication

Use microcontroller model , an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.

Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.

One/several transmitters can control one/several receivers simultaneously.

The remote control chip uses 1527 and has millions of codes, so multiple remote control signals do not interfere with each other.

Transmitting Frequency: The default frequency is 433MHz ,we can also provide 315MHz, you can leave us a message or contact us if you need.

Receiver:

Model No.: M1-AC

Channel: 1 CH

Control Modes: Toggle

Coding Type: Fixed code

Coding Setting: By learning

Power Supply (Operating Voltage): AC80-260V

Working Voltage Range of Relay: AC80-260V

Load power:<200w

PCB size: 37mm x 38mm x 17mm

Case size: 42mm x 59mm x 24mm

Maximum Working Current: 10A

Transmitter:

Model No.: R-1

Channel: 1 CH

Remote Control Distance: 100m / 300ft (theoretically)

Encode: Fixed code by Soldering

Power Supply: 1 x 23A -12V battery (included, can be used for 12-24 months)

Usage:

Setting different control modes (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as

following operation):

Setting control mode Toggle: Only connect T(on the back of pcb).

Control mode Toggle: Press -> On; Press again -> Off.

Press button: Turn on the relay

Press button again: Turn off the relay

We have learned remote control to the receiver. If you don’t want the receiver to work with the remote control, you can delete all codes of remote controls, which are stored in the receiver.

Pairing and clearing methods for remote control and controller

1. Paired learning method for remote control and controller:

Press the learn button on the side of the controller once, and the indicator light will light up. At this time

Enter the learning pairing state, press a few times within 5 seconds to casually paste or

Remote control buttons (randomly attached or the remote control should be pre installed with electricity)

Pool), pairing should be completed within 5 seconds, otherwise pairing will not be successful. After successful pairing, the indicator light will flash 3 times to indicate successful pairing.

2. Method for clearing remote control by controller:

Long press the side learn button for 10 seconds, and the indicator light will flash continuously twice, indicating that all remote controls have been cleared.

Switch to NO for normally open: When there is a power outage and the power comes back on, there is no electrical output at the output terminal.



Switch to NC for normally closed: When there is a power outage and the power comes back on, there is electrical output at the output terminal.
